Digital, portable and multifunctional medical camera system

RCS-100 allows accurate first diagnosis and planning of consistent follow-up treatment.

General features

• Dimensions: 225 mm x 135 mm x 45 mm (8.86 in x 5.31 in x 1.77 in)
• Weight: 292 g (10.3 oz)
• Power supply: rechargeable Li-ion battery

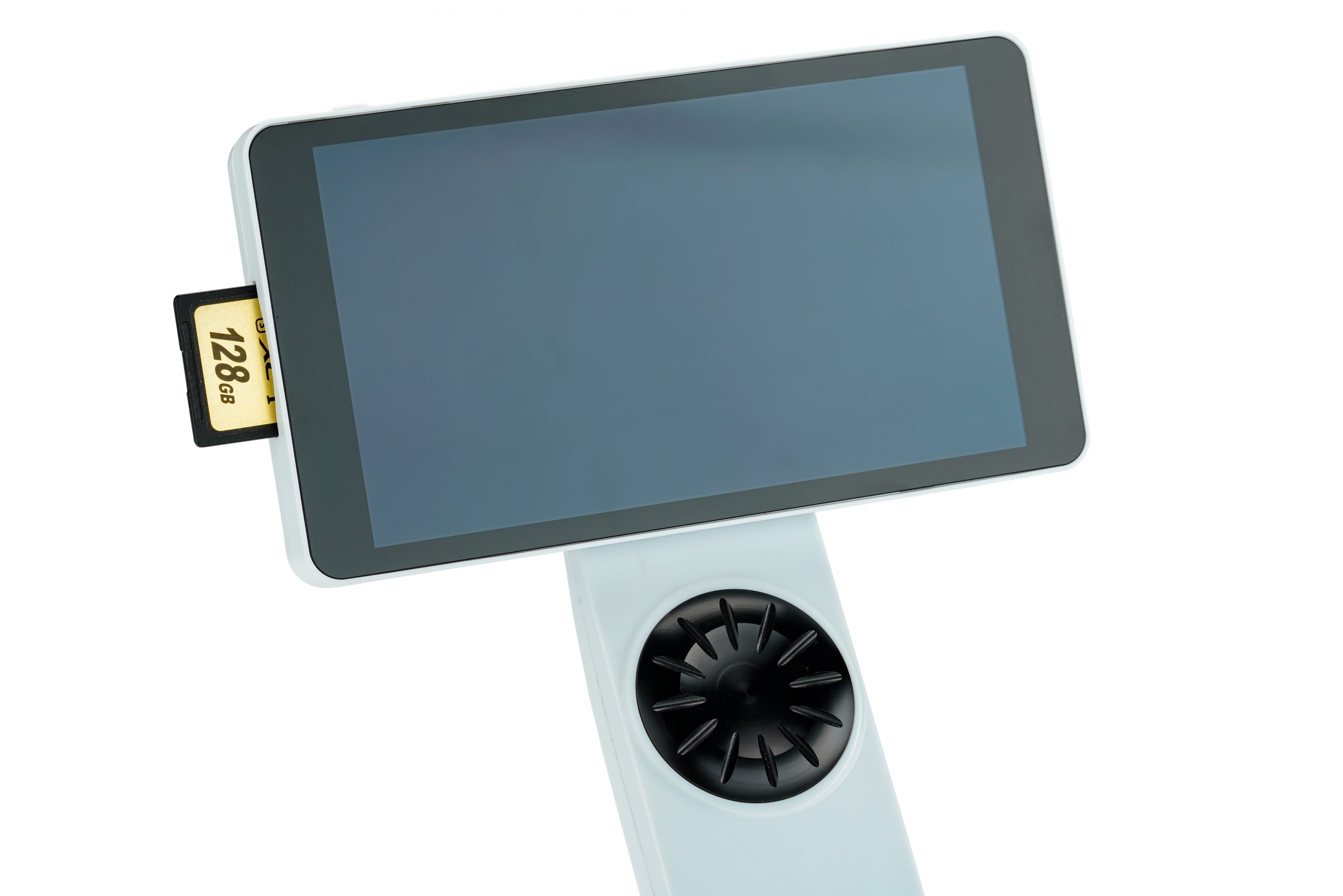

• 5” full HD colour TFT-LCD display, including scratch proof cover 1.280×720 Pixel
• Touch screen, very easy to use
• Rotary wheel allows easy one-hand operation
• 16 GB internal memory
• 3.5 hours operating time in video mode
• Bayonet connector for attachable optic modules for fast & easy change of lenses
• Image and video function
• Focus settings: automatic (otoscope/general lens), manual (all lenses)
• RCS-100 user interface available in different languages: english, german, french, spanish, italian, russian, chinese, arabic)
• New patient to be added via UI, info saved in name of picture / video file
• Power adapter incl. country plugs (EU, US, UK, Australia)
• Charging time: 3 hours

Imaging

• 8 MPixel CMOS for high resolution and a scaleable image
• Image format: JPEG
• Video format: H.264
• Resolution: Full HD true 3264 x 2448 Pixel

Connectivity

• Micro USB 2.0, cable length min. 180cm
• UVC function (to be activated via UI on camera) allows live picture display on 2nd screen in parallel
• WiFi SD card (16GB) optionally available

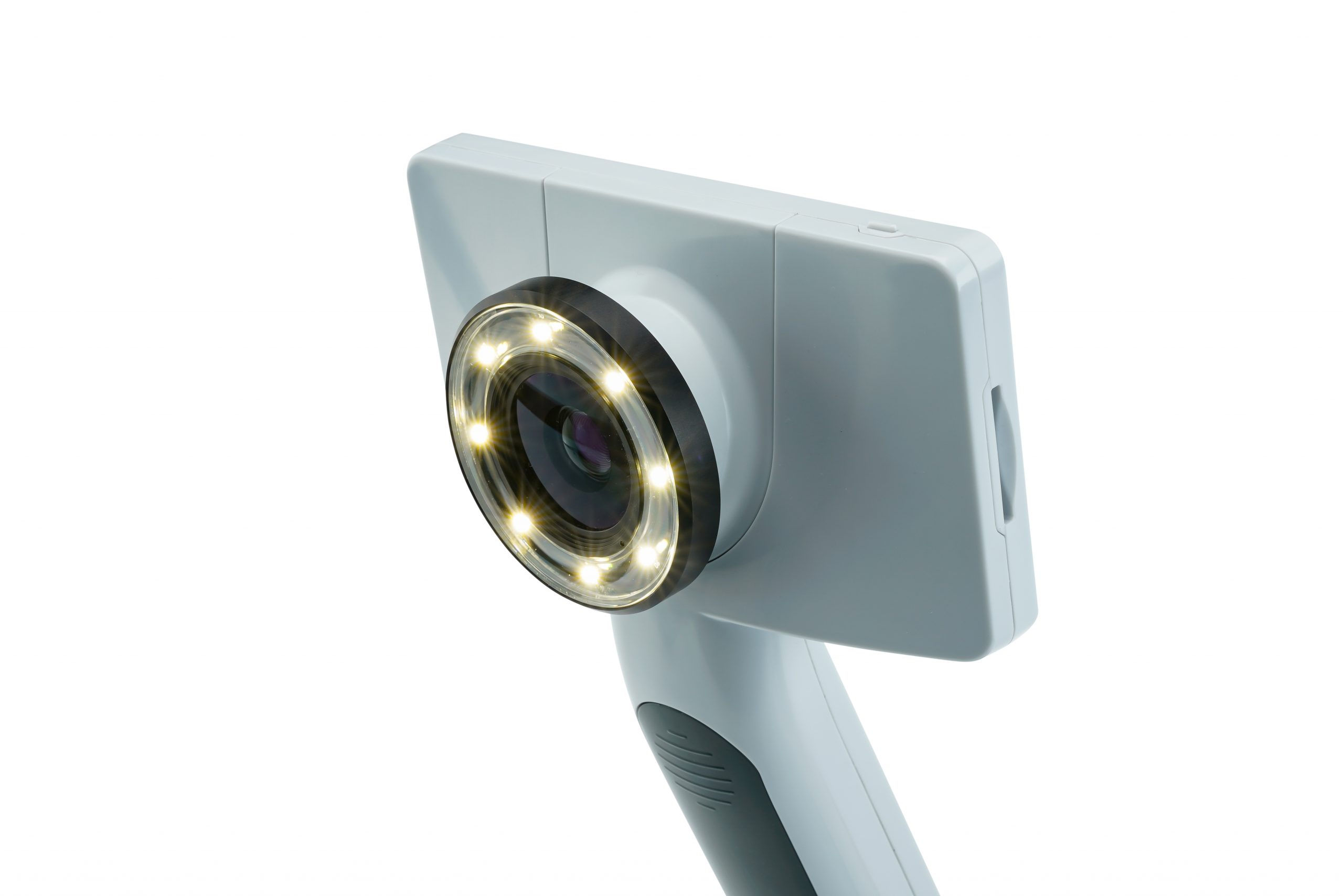

Features of dermatoscope lens

• Accurate identification and measurement of skin lesions
• No immersion necessary
• Light source: visible white LED
• LED colour temperature: 4000K
• Field of view: 30 mm Ø (1.18 in Ø)
• Resolution: 8 MP CMOS
• Digital movable ruler
• Optical magnification: 2x (from optics)
• Digital magnificaton: 4x (on top)
• Displayed magnification: 2x – 8x
• Dimensions: 62.1 mm x 62.1 mm x 36 mm (24.4 in x 24.4 in x 1.42 in)
• Weight: 108.5 g (3.83 oz)
